Mild Steel Wire Rod Coils

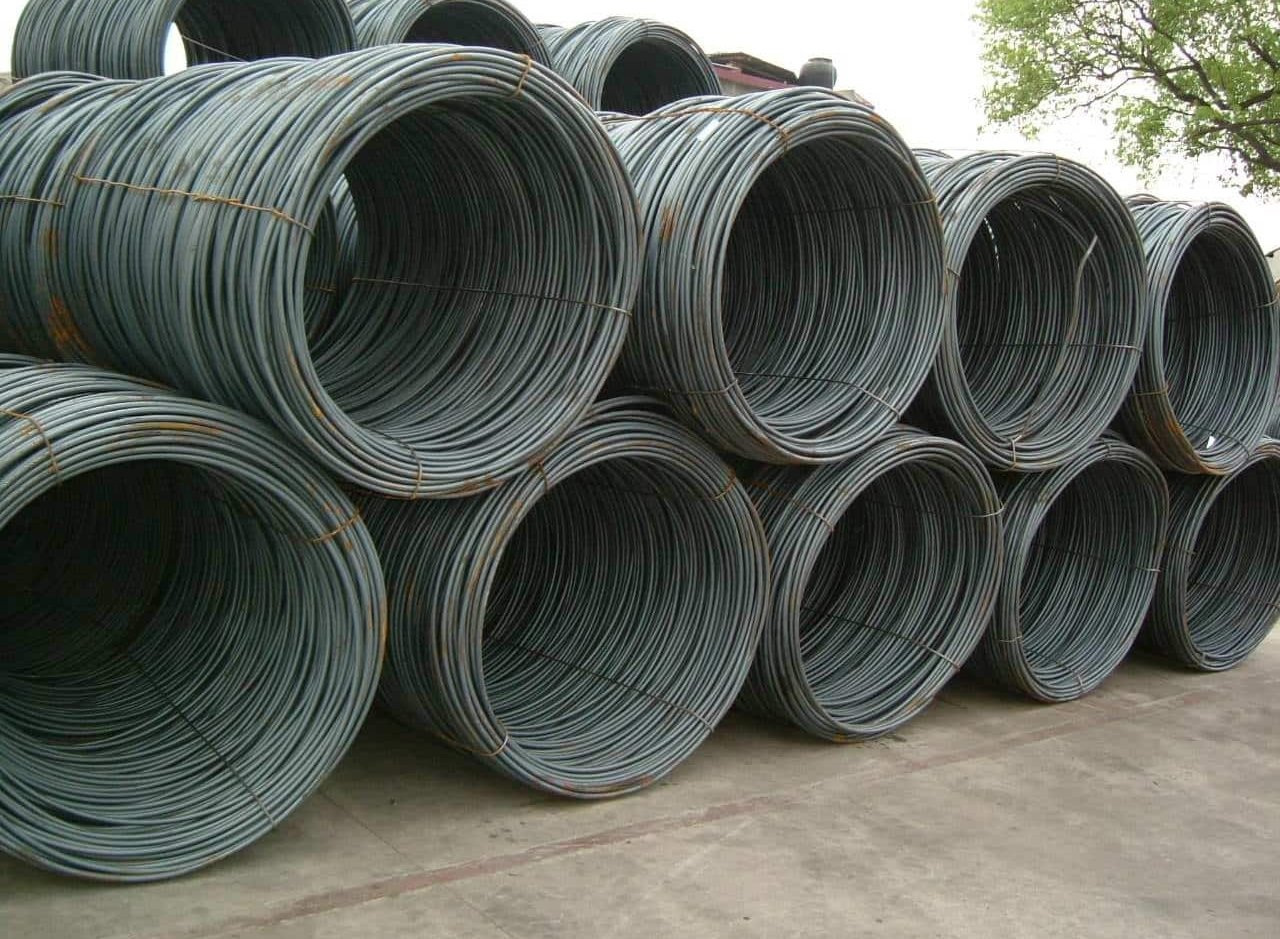

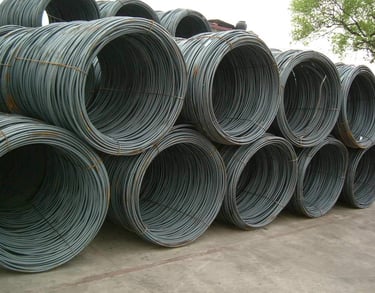

Mild Steel Wire Rod Coil

Mild Steel Wire Rod Coil is a semi-finished hot-rolled long steel product, supplied in coil form, produced from billets in a wire rod mill. It has low carbon content (0.05–0.25% C), making it ductile, weldable, and easily formable.

These coils are used as feedstock for manufacturing wires, fasteners, nails, welding electrodes, springs, ropes, mesh, and reinforcement products.

Uses of MS Wire Rod Coil

• Construction: Binding wires, fencing wires, welded mesh, nails.

• Automotive & Engineering: Bolts, nuts, screws, springs.

• Electrical: Welding electrodes, wire ropes, armored cables.

• General Fabrication: Chains, rivets, cold-heading quality wires.

• Agriculture: Barbed wire, wire netting, tools.

Specifications

1. Sizes & Form

• Diameter: 5.5 mm to 14 mm (common range; can go up to 22 mm).

• Form: Supplied in coils (loose or compact), weight ~1–2 MT each.

2. Physical Properties

• Surface: Hot-rolled, scale-covered (pickling can be done for clean surface).

• Tensile Strength: 350–600 MPa (depending on grade & treatment).

• Elongation: 20–25% (good ductility).

• Density: ~7.85 g/cm³.

• Weldability: Excellent.

3. Chemical Properties (Typical for MS Wire Rods)

• Carbon (C): 0.05 – 0.25%

• Manganese (Mn): 0.30 – 0.90%

• Sulphur (S): ≤ 0.05%

• Phosphorus (P): ≤ 0.05%

• Silicon (Si): ≤ 0.30%

• Iron (Fe): Balance

Grades & Standards

• IS 2062 (India) – General structural quality.

• IS 7887 – Low-carbon steel wire rods.

• ASTM A510 / SAE 1006, 1008, 1010 – International standards.

• EN 10016 – European standard.

Advantages of MS Wire Rods

• Excellent ductility & formability → suitable for drawing into fine wires.

• Low cost compared to alloy or stainless wire rods.

• Wide applicability in industrial & construction sectors.
